Star 5 Frigo 1 -10°C(-30°C)

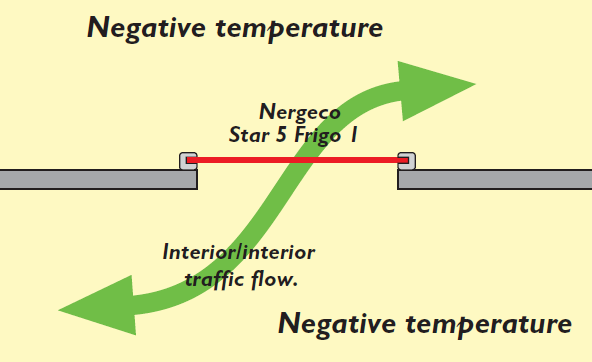

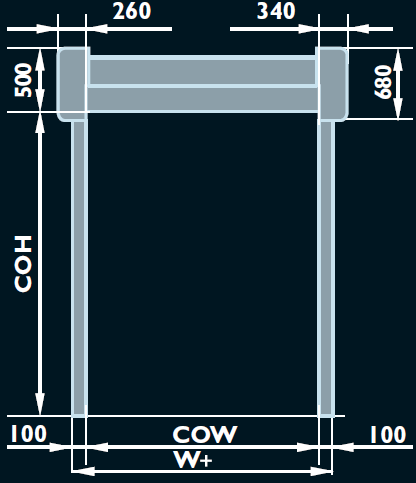

The Star 5 Frigo 1 is designed to divide two areas in freezer environment without obstructing traffic. It combines a single layer flexible curtain reinforced against pressure differences, with free® multiflexible® soft bottom edge, with a new high performance structure. Dimensions up to 3 x 4 m Also available in the same product line : Star 5 Frigo 2+/+ to separate chilled and ambient area, Star 5 Frigo 2 +/- for unsulation between freezer and chilled area and Star 5 Frigo 3 for enhanced insulation between freezer and ambient area.

Installation

The independent structure is fitted in the opening,
inside or outside of the volume to be insulated.

Operation

  • Opening:

    “just in time®”, manual or automatic with all kinds of detection, at a speed of 0.6 to 0.8 m/s based on curtain dimension.

  • Closing:

    “fast®”, manual or automatic with an adjustable timer, at a speed of 0.8 to 0.6 m/s.

  • Power-free opening:

    ratchet handle.

  • Motor unit:

    fitted on the left or right side - 1.1 kW - IP 54 - Stainless steel brake - Deep-Freeze grade lubrication.

  • Power supply:

    230/400 V tri-phase + neutral for anti-freeze system +earth connection, 50 Hz, upstream circuit breaker protection. 300 mA.

Insulation

  • Closed door: the flexible curtain can withstand pressure differences up to 100 Pa and limits the peripheral leakage area.
  • At each cycle: it reduces the opening time per cycle thanks to its “just in time®” opening and “fast®” closing with enhanced safety.


  • Motor unit: fitted on the left or right side - 1.1 kW - IP54 - Stainless steel brake - Deep-Freeze grade lubrication.
  • Power supply: 230/400 V tri-phase + neutral for anti-freeze system +earth connection, 50 Hz, upstream
    circuit breaker protection. 300 mA.


Adapted for cold room processes

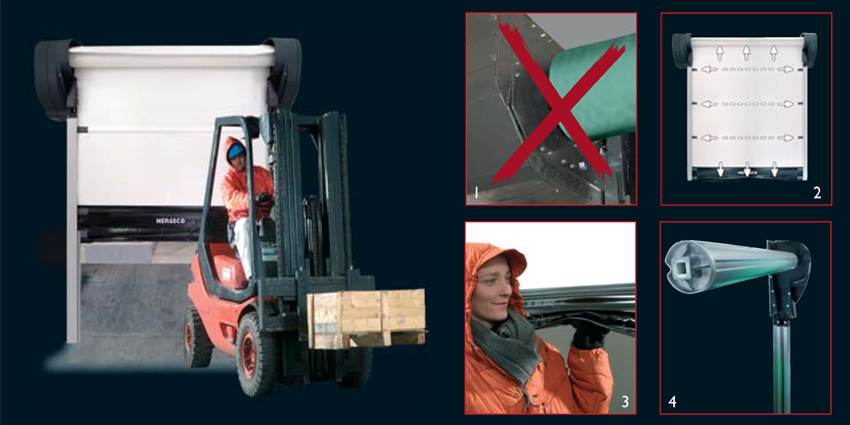

  • With no mechanical welding (1) the Star 5 Frigo 1® combines a food grade curtain with sealed horizontal welds (2), and free®, multiflexible® and compressible (3) soft bottom edge with a structure and mechanism that are smooth, water-repellent, corrosion-free and thermal bridge (4).
  • These latest generation of materials offer performances superior to 316L stainless steel.
  • Low-diffusion, self-regulated antifreeze system integrated in the vertical guides.
  • Spare parts readily available from stock
